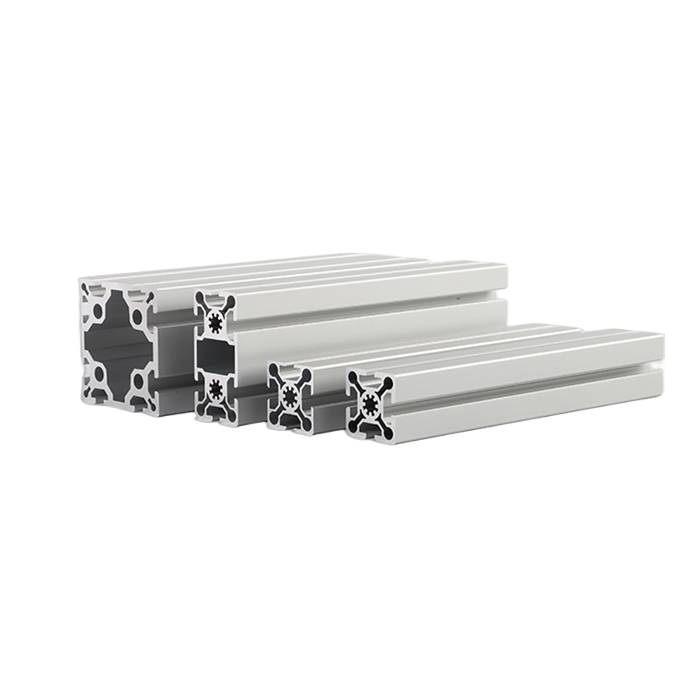

Frame aluminum profile specifications and models

We often say that the frame Aluminum Profile usually refers to 6063 series aluminum magnesium alloy profile, it belongs to a kind of industrial frame material,

according to the design scheme to achieve a variety of structures quickly built; Frame aluminum profile is characterized by its unique groove structure and end structure design,

Only after simple processing can be matched with special connectors to achieve rapid assembly, the application is very convenient and simple;

And the frame aluminum profile product specifications are rich, we can choose the corresponding specifications according to the performance needs of the frame structure profile,

let's briefly introduce the conventional frame aluminum profile including those models;

Commonly used frame Aluminum Profiles include 6 specifications, respectively 20, 30, 40, 45, 50 and 60, which contains hundreds of models, below we simply list the more commonly used aluminum profile models, for reference;

(1) 20 specifications aluminum profiles include 2020, 2040, 2060, 2080 and 4040 five models, 4040 for double groove aluminum profiles;

(2) 30 specifications aluminum profile including 3030, 3030R, 3030-2N90, 3030-2N180, 3060, 3090, 30120, 30150, 6060 nine models, including 3030 aluminum profile is divided into standard and heavy duty two specifications, 6060 for double groove profile;

(3) 40 specifications aluminum profiles include 4040, 4040R, 4040-2N90, 4040-2N180, 4060, 4080, 40120, 40160, 8080 and 80120 ten models, Among them, 4040, 4080, 8080 three types of aluminum profiles are divided into light, standard, heavy three kinds of specifications, and respectively developed a section for the flower hole profile category;

(4) 45 specifications aluminum profile mainly includes 4545, 4545R, 4545-2N90, 455-2N180, 4560, 4590 and 9090 seven models, including 4545 and 4590 aluminum profile is divided into standard and light two specifications;

(5) 50 specifications aluminum profiles include 5050, 50100, 100100 three models;

(6) 60 specifications aluminum profiles include a 6060 model;

Above we simply list dozens of more commonly used aluminum profile models, from which we can find that the same specification of aluminum profile model is mostly in multiple growth, its main purpose is to facilitate the use of aluminum profiles in the same specification,

But it also contains some special types of aluminum profiles, such as R Angle profiles, 2N90 and 2N180, they are mainly used for some special structures;
