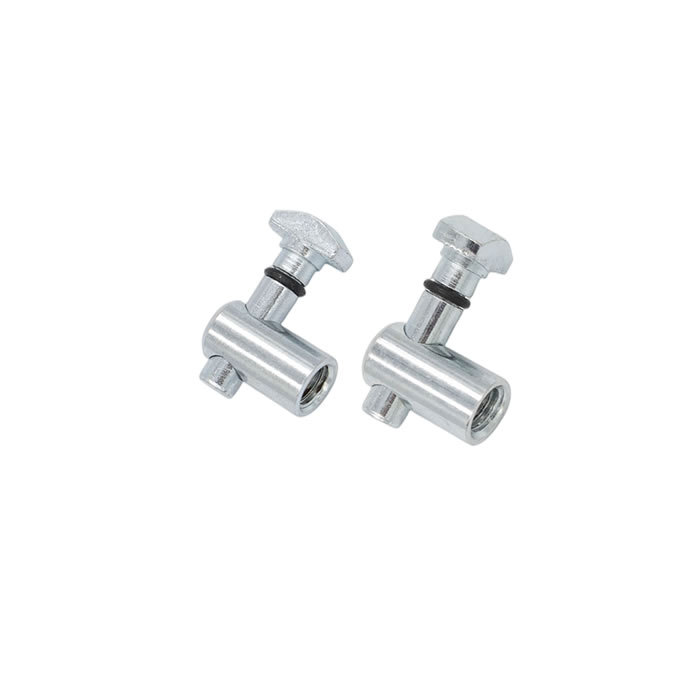

Carbon Steel Central Connector for Aluminium Extruded Tube 8 Slot Profile

5out of5 based on5 reviews | Write a review

Material:  CARBON STEEL

Type:  Quick Connector

Packing:  plastic bag+carton+pallet

Orientation:  0°/90°

Application:  Aluminum profile slot 10

Description:  Aluminum profile connector

Surface treatment:  Zinc plated


Quick Connectors are our preferred method of fastening extrusion and is the Framing Tech standard when desi

Material:  CARBON STEEL

Type:  Quick Connector

Packing:  plastic bag+carton+pallet

Orientation:  0°/90°

Application:  Aluminum Profile slot 10

Description:  aluminum profile connector

Surface treatment:  Zinc Plated


Quick connectors are our preferred method of fastening extrusion and is the Framing Tech standard when designing frames.

 They offer a superior connection vs Connection screws and are very easy to use.

 For 30mm series extrusion, an 11mm hole is drilled into the extrusion to receive the barrel.

For 45mm series extrusion, a 17mm hole is drilled into the extrusion to receive the barrel.

The hammer is then inserted into the centerbore of the extrusion and into the barrel.

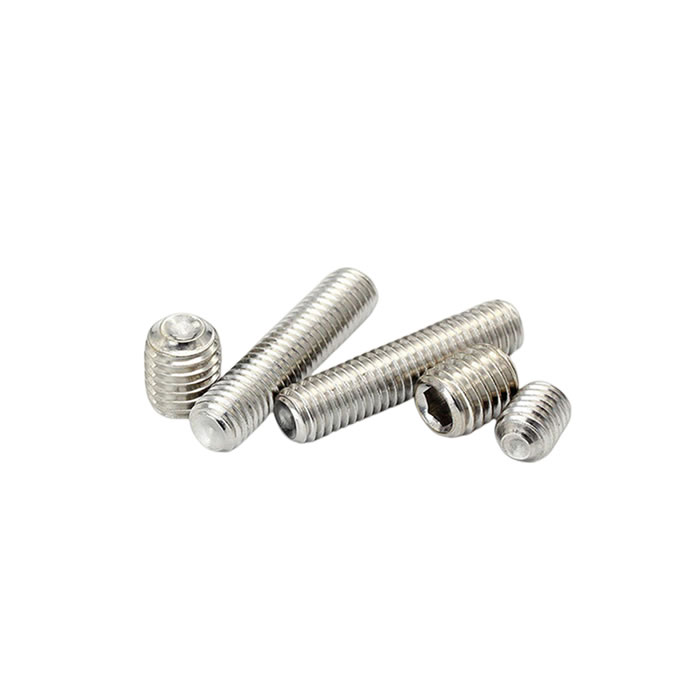

A set screw is then inserted and tightened slightly to align the hammer.

After inserting the exposed head of the hammer into an adjacent piece of extrusion, simply tighten the set screw fully.

 This pulls the head of the hammer back, creating a strong connection with the adjacent extrusion.

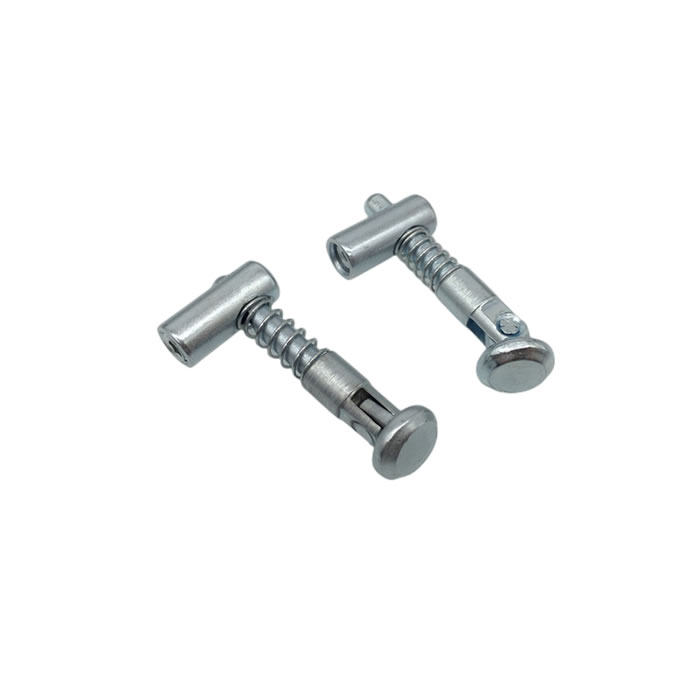

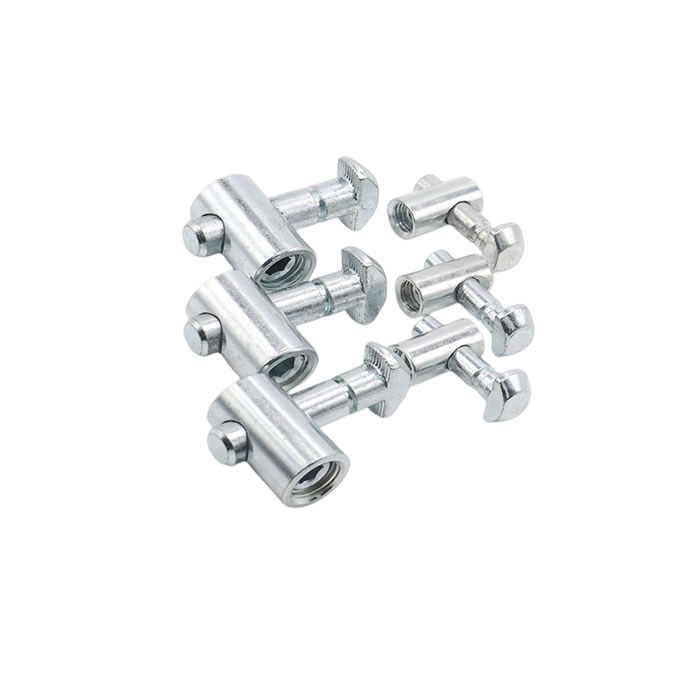

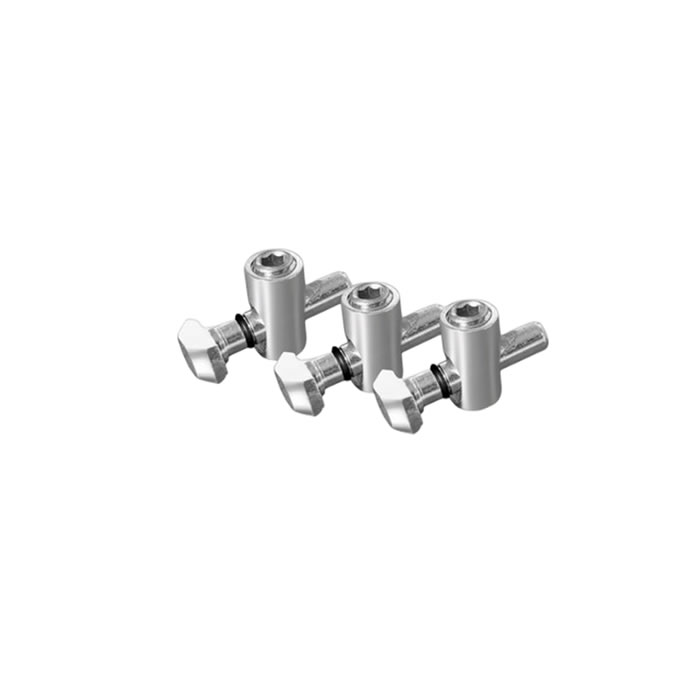

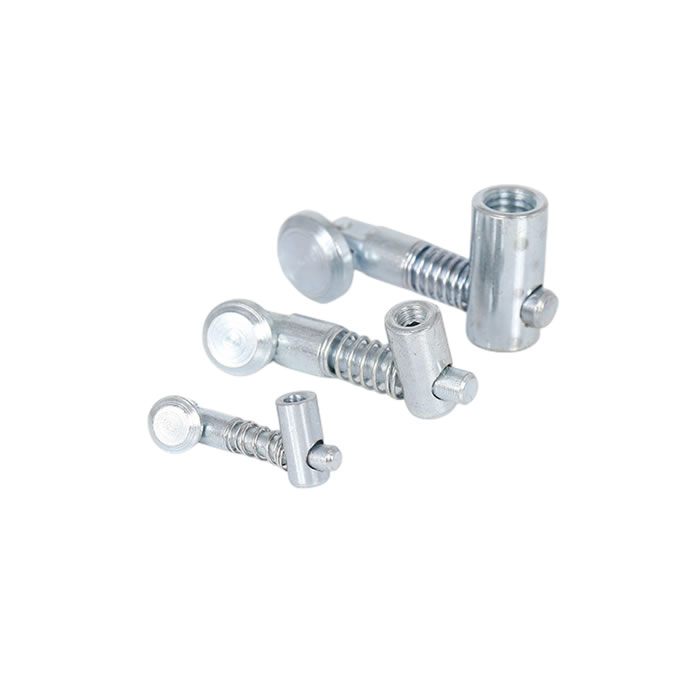

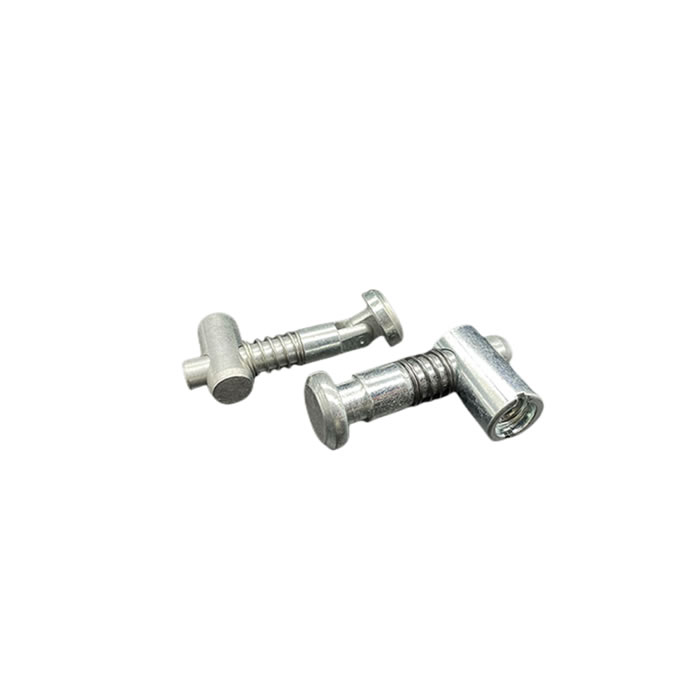

Quick connector

Application:

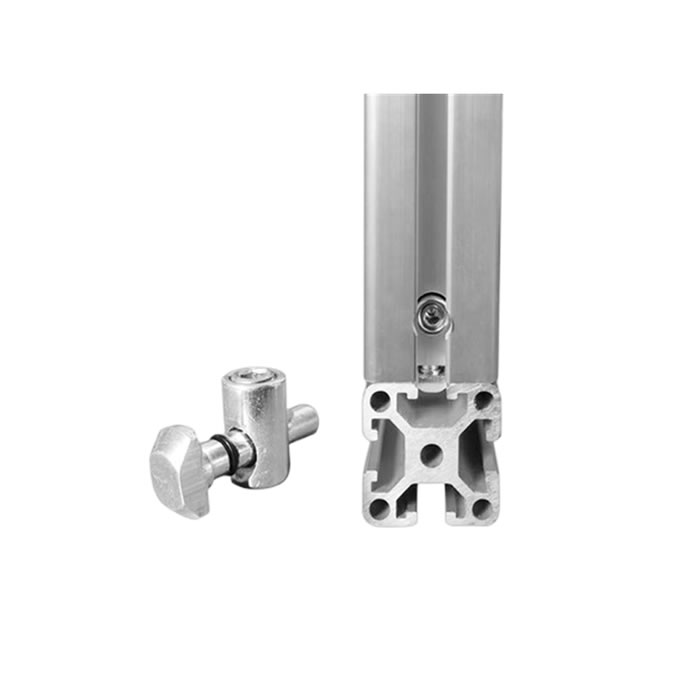

For adjustable 90° profile connections. Central connectors allow the connection of two profiles.

A step drill operation is required to one of the profiles in addtion to an  end drill to accommodate the barrel and tightening screw.


PROVIDING EXCELLENT SOLUTIONS BY VITO™


Speak to one of our experts today to learn more about our Carbon Steel Central Connector for Aluminium Extruded Tube 8 Slot Profile products solutions.


Request a Quote

Tags: Aluminium Extruded Tube 8 Slot Profile
