Commonly used aluminum profile connectors
Common Aluminum Profile connecting parts
6063-T5 series aluminum extrusion profiles commonly used connecting parts, 6063-T5 series aluminum extrusion profiles belong to high strength, high bearing frame profiles, also known as industrial Aluminum Profiles, mainly used in a variety of industrial frame structure processing assembly;
Industrial aluminum profile after years of development and application gradually formed a standardized, modular product system, with a variety of connection ways, can achieve a variety of industrial frame structure rapid processing and assembly, the following details of aluminum frame profile commonly used connection accessories and the main uses;
1: indicates the connection corner code
Aluminum profile connecting corner code belongs to aluminum profile frame rapid connection accessories,
with special fasteners can achieve fast connection; Connecting corner codes are divided into two categories: cast aluminum corner parts and aluminum profile corner parts.
Cast aluminum Angle parts include: 2028, 3030, 3060, 4040, 4080, 8080, 4545, 4590 and other specifications,
Profile corner parts include: 45 degree profile corner parts (L8080-2018, L8080-2038, L8080-3026, L8080-3056, L8080-4036, L8080-4076, L8080-4541, L8080-4586, L8080-5046, L8080-5086),
135 degree profile corner parts (L7070-2018, L7070-2038, L7070-3026, L7070-3056, L7070-4036, L7070-4076, L7070-4541, L7070-4586, L7070-5046, L7070-5096),
90 degree profile corner parts (L5050-3026, L5050-3056, L5050-4036, L5050-4076, L5050-4541, L5050-4586, L5050-5046, L5050-5096),
90 degrees strong profile corner pieces (L7878-3026, L7878-3056, L7878-4036, L7878-4076, L7878-4541, L7878-4586, L7878-5046, L7878-5096) and other specifications and models,
Specification selection can be carried out according to the frame assembly requirements;
2: movable hinge
The movable hinge connector belongs to the functional fastening connection accessories,
which can realize the movable link of two aluminum profiles or any Angle connection within 180 degrees Angle,
and can be matched with the fastening handle to realize the function expansion;
Groove connector is mainly used in two aluminum profile linear connection, for frame frame structure extension fixed;
Slot connector has a variety of specifications, need to be selected according to the profile slot width;
4: corner groove connector
The corner groove connector is mainly suitable for two aluminum profiles 90 degree Angle connection,
the two aluminum profiles are inserted into the corner groove connector, and then the use of the top wire lock and can achieve rapid assembly;
5: Quick connector
Fast connecting parts belong to the aluminum profile frame structure 90 degree Angle connection is more commonly used fastening connecting accessories,
before use, need to tap the center hole of two aluminum profiles one of the profiles, and then the fast connecting parts are fixed in the end of the profile, and then inserted into another profile groove using the top wire lock can be;

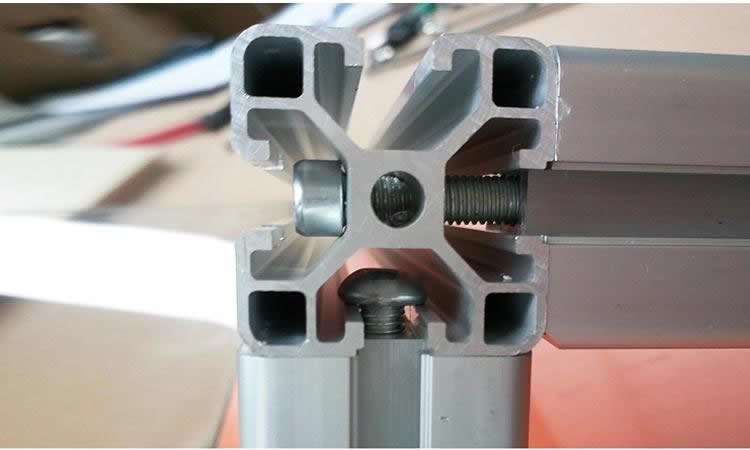

7: built-in inner connector
The internal connector and the internal connector function is similar, mainly used for two aluminum profiles 90 degree Angle internal fastening connection,
suitable for industrial frame structure with special assembly requirements;
8: bevel connector
Bevel connectors do not belong to the commonly used connecting accessories of aluminum profile frame assembly,
mainly used in the frame structure with special Angle connection (90 degrees bevel connection) requirements of fastening connection;
9: three-dimensional Angle connector
Three-dimensional Angle connector is mainly used in three aluminum profile right Angle connection,
mainly applicable to the fastening connection of the three 90 degree Angle intersection of the frame side, is one of the more commonly used fastening connection accessories;
10: T-bolt
T-bolt is one of the commonly used fasteners for aluminum profile frame assembly, which needs to be used with flange nut.
T-bolts have a variety of specifications, according to the frame assembly selection of aluminum profile specifications for T-bolts selection;
11: elastic/shrapnel nut
Elastic or shrapnel nut is one of the commonly used fastening accessories for aluminum profile frame assembly.
The elastic/shrapnel nut can be directly inserted and fixed at any point in the profile slot, and then the bolt is used to fix the connection, which is a relatively convenient fastening accessory;
12: square nut
Square nut is also one of the commonly used fastening accessories for aluminum profile frame assembly. Before fastening,
the square nut needs to be placed in the groove pit of the profile in advance, and then the bolt can be locked to achieve rapid assembly.
13: end connecting plate
End connecting plate is mainly used in the fixed connection of the bottom profile of the profile frame and the supporting foot.
It has a variety of specifications and can be selected according to the size of the profile. It is one of the more commonly used connecting accessories.
The above aluminum profile connecting parts for aluminum profile frame processing and assembly is more commonly used connecting parts,
belongs to 6063-T5 series European standard aluminum profile special connecting parts, is according to different application needs and developed special fastening parts,
so as to realize the rapid assembly and connection of various industrial frames of different structures;
