Aluminum Profile Pivot joint with locking lever

Material:  Zinc alloy

Type:  Pivot joint, Precision Nonstandard Parts(OEM Service)

Application:  Aluminum Profile

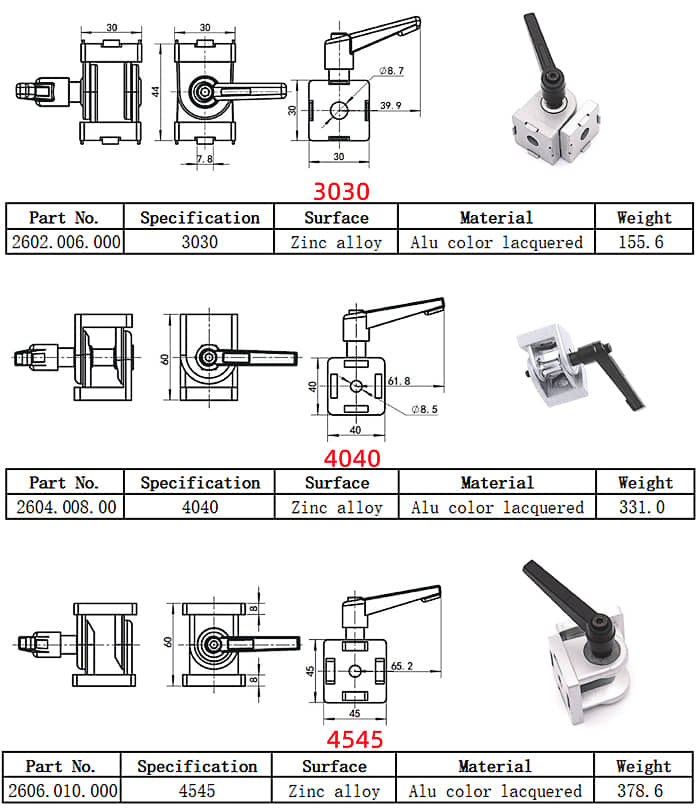

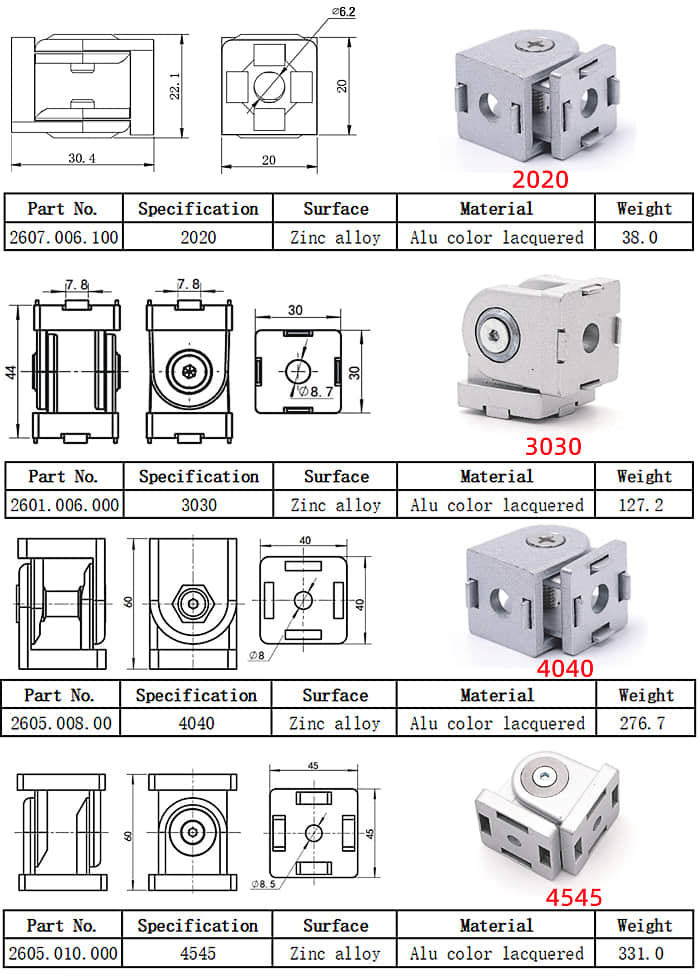

Specification:  2020 3030 4040 service with locking lever

Description:  Pivot joint with locking lever

Features:

Metric profile connector

Allows the fastening of two pieces of strut at a 90 degree angle

Used for 20mm with 6mm T-slot profiles

Cover caps are ideal for clean room applications, and gives a clean finished look

Hardware included

Metric profile connector

Used for 20 Serie Profiles with a 6mm T-slot

Allows the fastening of two pieces of strut at a various angles - 182° DoF

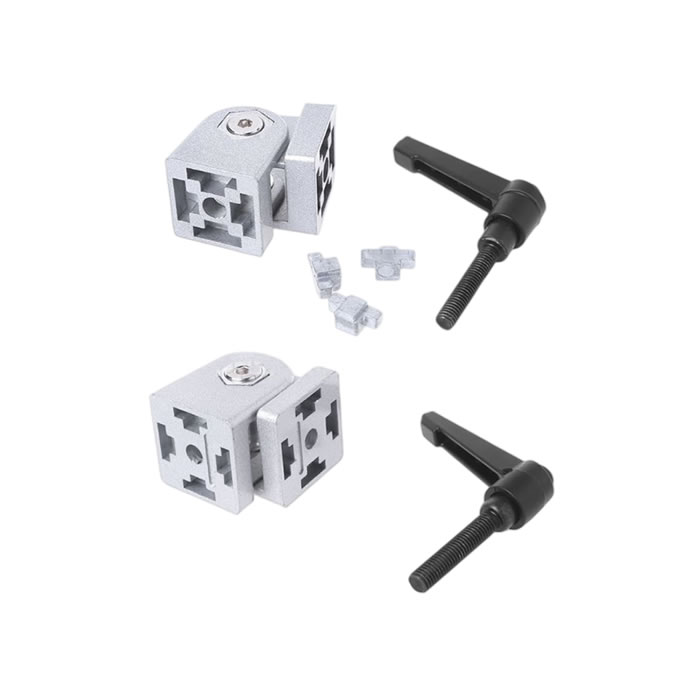

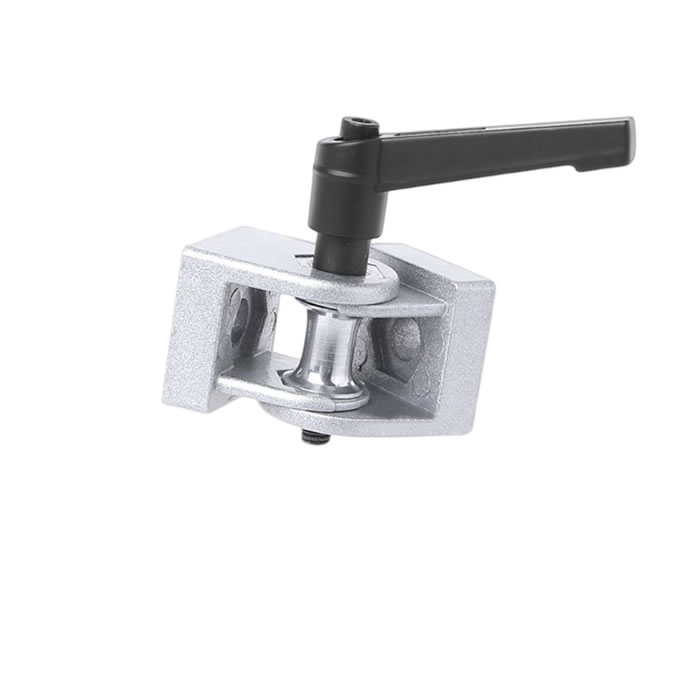

Comes with tension handle

There are three types of connecting methods (Hardware Sold Seperately):

"End-to-End" - Pivot Joint mounts to the ends of two connecting profiles.

"End-to-Side" - Pivot Joint mounts to the end of first profile and mounts to the side (T-slot) on the second profile

"Side-to-Side" - Pivot Joint mounts to the sides (T-slots) of the connecting profiles

Application：

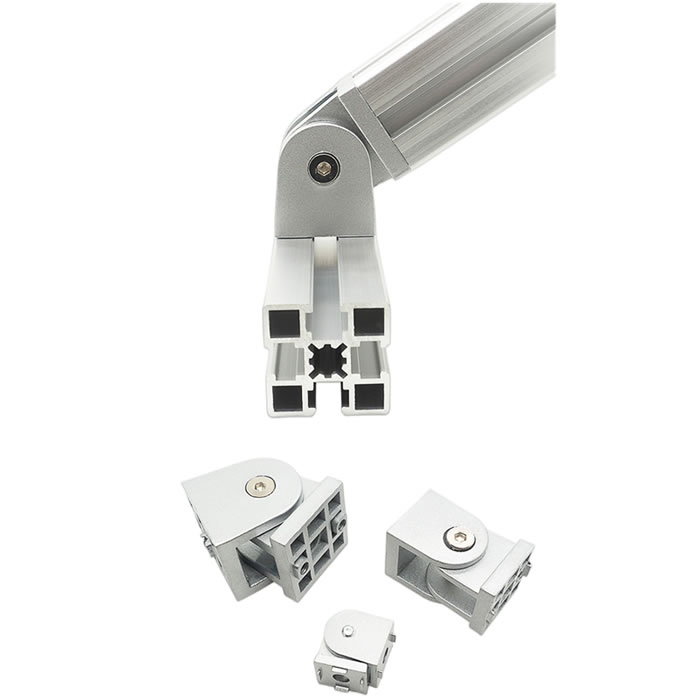

For connecting profiles at various angles from o° to 180° . Eliminates the need for a miter cut .Die cast inserts provide

allgnment with the profile end and prevent rotation.
