What are the accessories for the installation of aluminum profiles?

author：VITO time：2023-01-06 click：

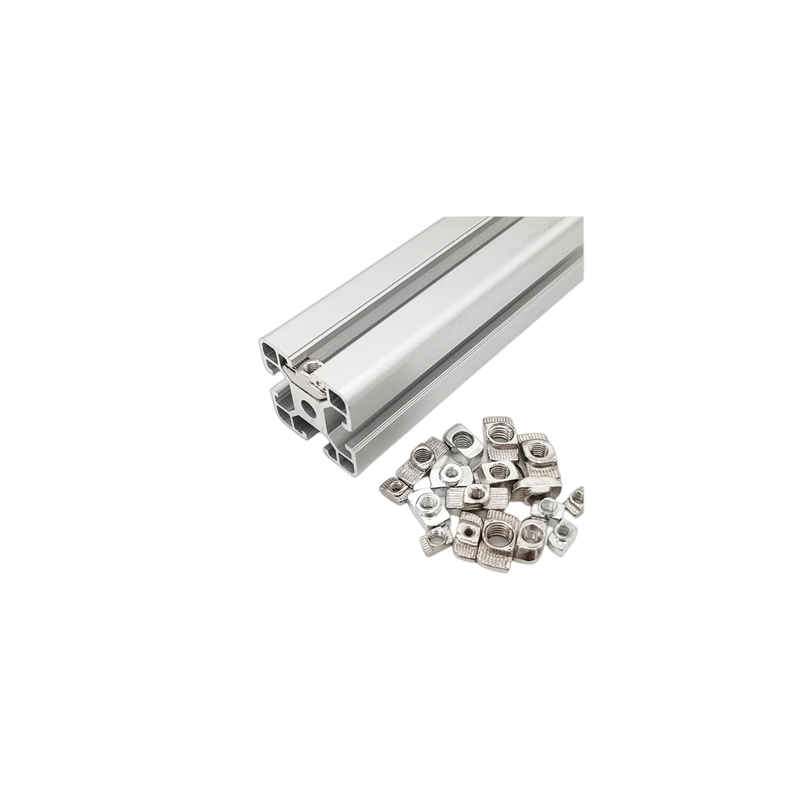

T型螺母 (7).png

We need to understand that aluminum installation is not done by welding, but through various accessories to complete the connection, it has a very rich accessories system,

according to different structure, effect, strength to choose the corresponding accessories to complete the installation, the operation is very simple and convenient;

Here we introduce one by one the commonly used aluminum accessories products include those, how to use;

Aluminum installation accessories are divided into three types of connecting parts, fasteners, seals, commonly used connecting parts including corner code, elastic coupler, movable hinge,

two-dimensional Angle/three-dimensional Angle connecting parts, corner groove connecting parts, groove connecting parts, built-in connecting parts, built-in internal connecting parts,

bevel connecting parts, Fastening accessories include cylindrical head bolts, flat bolts, half round head bolts, T-bolts, T-nuts, elastic nuts, slider nuts, seals including flat seal grass strip and end cover plate;

The above is the Aluminum Profile installation more commonly used accessories products, below we briefly introduce the use of various accessories;

Steel Die-cast Zinc Rhombus Round Slotted Threaded Nut

fittings

1) The Angle code is the most commonly used connection for the installation of Aluminum Profiles. It is divided into two materials: profiles and cast aluminum. When installing, it needs to be used with T-bolts and flange nuts.

2) The elastic coupler is usually used with the semicircle head bolt to prevent rotation;

3) The movable hinge is a connection method that can realize Angle adjustment. It can be fixed at different angles by adjusting the central shaft of the accessories.

When installing, it needs to be used with flat machine bolts or cylindrical head bolts.

4) 2D or 3D Angle connectors are mainly suitable for the connection of aluminum profile frame edge and Angle structure, which needs to be used with flat machine bolts during installation;

5) Corner groove connector and groove connector are respectively suitable for aluminum profiles 90 degrees and 180 degrees structure connection,

installation only need to insert the connector into the profile installation slot, lock the top wire can be;

6) The built-in connector, also known as the whistle connector, is a connection mode hidden in the groove of the profile. It needs to be used with the cylinder head bolt and slider nut when installing;

7) built-in connection is a kind of hidden in the profile internal connection mode, using the connection mode to achieve the effect is very beautiful, but for the profile processing accuracy requirements are very high;

M8 Hexagon Socket Head Cap Screw

Fasteners,

Usually fastening accessories do not directly act on the installation of aluminum profiles, but cylindrical head bolt exception, it is the assembly of aluminum frame is more commonly used connection method,

the end of the profile needs to be drilled before assembly, tapping processing, and then the use of cylindrical head bolts directly connected;

The seals

Sealing parts belong to auxiliary accessories, mainly used for aluminum profile end face and surface groove sealing treatment, installation is also relatively simple,

only need to insert the accessories into the groove or the end section of the compression can be;
